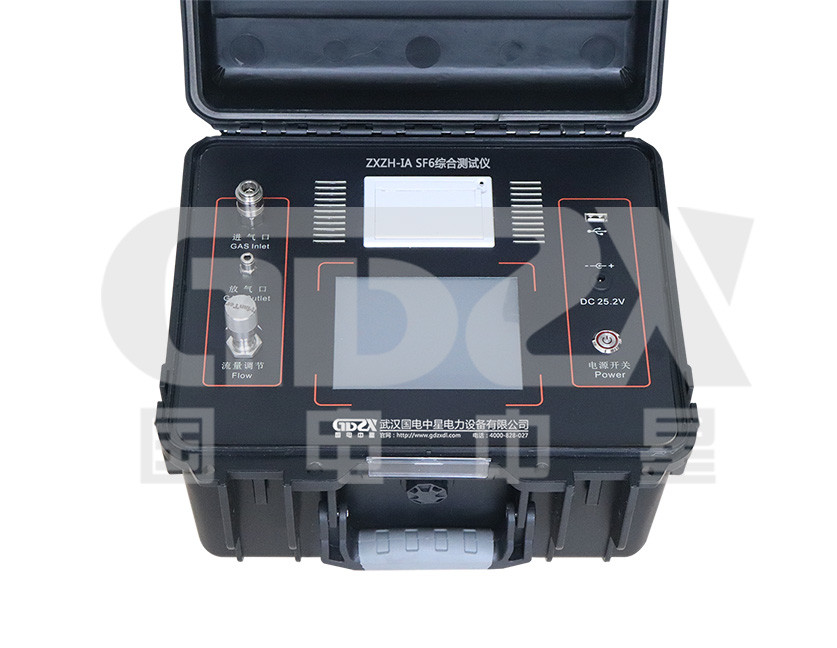

ZXZH Series SF6 Gas Comprehensive Tester
Product introduction
The humidity sensor of ZXZH Series SF6 Comprehensive Tester adopts the humidity sensor of VAISALA Company of Finland, and the purity, SO2, H2S, CO, HF and other sensors adopt the thermal conductivity sensor and electrochemical sensor of ALPHA Company of Britain; At the same time, it is equipped with the current new ARM development technology, mass flow sensor, temperature sensor and other precision sensors, making the sampling data more real, more reliable, faster computing speed and other advantages. The instrument adopts color LCD display, with friendly and beautiful interface and easy operation.
ZXZH Series SF6 Comprehensive Tester uses imported sensors with reliable performance as sensitive components, and also integrates real-time measurement, curve display, power management, time system, file system, data query, data printing and other functions, integrating new sensor technology and information technology at home and abroad, with humanized operation and perfect functions.
Features
1. Large capacity storage function, which can store 1000 records;
2. Battery status prompt;
3. Good repeatability and fast response;
4. Touch operated instrument;
5. Large screen color LCD display;
6. Protection function of new probe;
7. Anti pollution and anti-interference;
8. High sensitivity and good stability;
9. Compact and beautiful, easy to carry;
10. Intuitive curve display;
11. Micro water value is automatically converted to 20 ℃ standard micro water value;
Technical Indicators
| 1. Measurement range: | dew point - 80 ℃~+20 ℃ (supporting ppmv, etc.) |
| 2. Dew point accuracy: | the test accuracy is better than ± 0.5 ℃ (within the range) (When the dew point temperature is lower than 0 ℃, the sensor output is the frost point) |
| 3.Response time: | 63% [90%] +20→-20℃ Td 5s[45s]
-20→-60℃ Td 10s[240s] |
| 4. Resolution: | dew point 0.1 ℃ or 0.1ppm |
| 5. Repeatability: | ± 0.2 ℃ |
| 6. Measurement range of gas decomposition products: | SO2:0~100 μL/L H2S:0~100μL/L CO: 0~500μL/L HF: 0~10μL/L |
| 7. Sensitivity: | SO2:±0.5μL/L H2S:±0.5μL/L CO:±1μL/L HF: 0.1μL/L |
| 8. SF6 gas purity measurement range: | 0~99.99% |
| 9. Measurement accuracy: | error within the range of 90%~99.99% ≤± 0.1%; |
| 10. Gas flow: | the flow is adjusted at 0.8L/min - 1.0L/min |
| 11. Probe protection: | stainless steel sintered filter screen |
| 12. Working voltage: | 220VAC±10%, 24V lithium battery |
| 13. Storage temperature class: | - 40~+70 ℃ |
| 14. Operating environment: | temperature: - 35~+60 ℃ Pressure: 0~20bar Sample gas flow rate: no effect |
| 15. Electronic mass flowmeter |
| 16.Size and weight: | 50*45*40cm; 15kg |
