The instrument has a large output current and is light in weight.
-
The instrument provides 7-speed output current selection, which can output up to 10A current.
-
The measuring range of the instrument is 0uΩ-20KΩ.
-
With perfect protection circuit, the performance is more reliable.
-
Lithium battery power supply for easy on-site operation.
-
The LCD prompt menu is easy to use.
-
It has sound and liquid crystal indicating discharge alarm, clear discharge index and reduce misoperation.
Technical indicators:
1. Output current:10A,5A,1A,200mA,400mA,40mA,<5mA
2. Range:0-180mΩ (10A)
180mΩ-360mΩ (5A)
360mΩ-1.8Ω (1A)
1.8Ω-4.5Ω (400mA)
4.5Ω-9Ω (200mA)
9Ω-45Ω (40mA)
45Ω-20kΩ (<5mA)
0mΩ-20kΩ (automatic)
3. Accuracy:0.2%±2μΩ
4. Resolution:0.1μΩ
5. Operating temperature:-20～40℃
6. Environment humidity:≤80%RH,No condensation
7. Working power:AC220V
8. Volume:400×220×320mm
9. Weight:10kg
For more information , click this link to send us inquiry now !

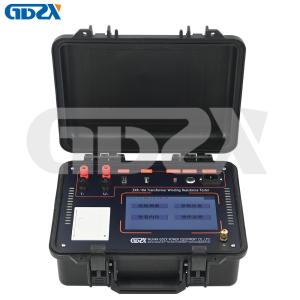

Product pictures:
Our company :
Wuhan GDZX Power Equipment Co.,ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
What's more, our customers come from different countries like America, England, Peru , Malysia, Vietnam ,Singapore and so on.
Our main products are High voltage tester , Cable Fault Locator, Power Quality Analyzer, Standard Power source , Testing Transformer and so on.
Packaging & Delivery
1. Delivery within 8-15 work days
2. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
3. Experienced and professional logistic agent .
