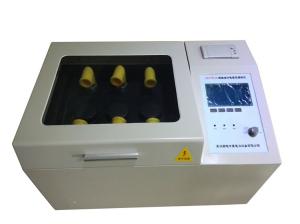

Auto Insulating Transformer Oil Analysis Dielectric Strength Breakdown Voltage Tester

Name: Auto Insulating Transformer Oil Analysis Dielectric Strength Breakdown Voltage Tester
Brand: GDZX
Price: 2 USD

Brand Name : GDZX

Model Number : ZXJYD-III

Place of Origin : Hubei, China

MOQ : 1 Set

Price : $2,200.00 - $4,200.00 / Sets

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100 Set/Sets per Month

Delivery Time : 7~10 work days

Packaging Details : Carton or wooden box

Product name : Insulating Oil Dielectric Strength Breakdown Voltage Tester

Booster capacity : 1.5kVA

Boost speed : 2.0kV/s,2.5kV/s,3.0kV/s,3.5kV/s for option

Output voltage : 0~80kV

Voltage distortion : <1%

Display : Screen LCD

Contact Now

Features

1. Controlled by large-capacity single-chip, stable and reliable;

2. Offers a wide range watchdog circuit, eliminate the phenomenon of dead halt

3. A variety of operation choices, two national standard GB1986/GB2002 method and customized operation to meet different needs of users

4. One-time-forming glass cup, no oil leakage

5. Unique high voltage sampling instrument design allows test values directly into the A/D converter, to avoid errors in analog circuits, and measurement results more accurate;

6. Over voltage, over current, limit and grounding alarm functions

7. Portable, easy to carry, convenient to use inside or outside doors

Technique Parameters

Booster capacity	1.5kVA
Boost speed	2.0kV/s,2.5kV/s,3.0kV/s,3.5kV/s for option
Output voltage	0~80kV
Voltage distortion	<1%
Display	Large screen LCD
Inter-electrode space	2.5mm
Work temperature	0~40℃
Humidity	≤85%
Power supply	AC 220V ± 10%
Frequency	50Hz ± 5Hz
Power consumption	<200W
Dimension	730×410×390mm
Net Weight	38kg

Auto Insulating Transformer Oil Analysis Dielectric Strength Breakdown Voltage Tester
